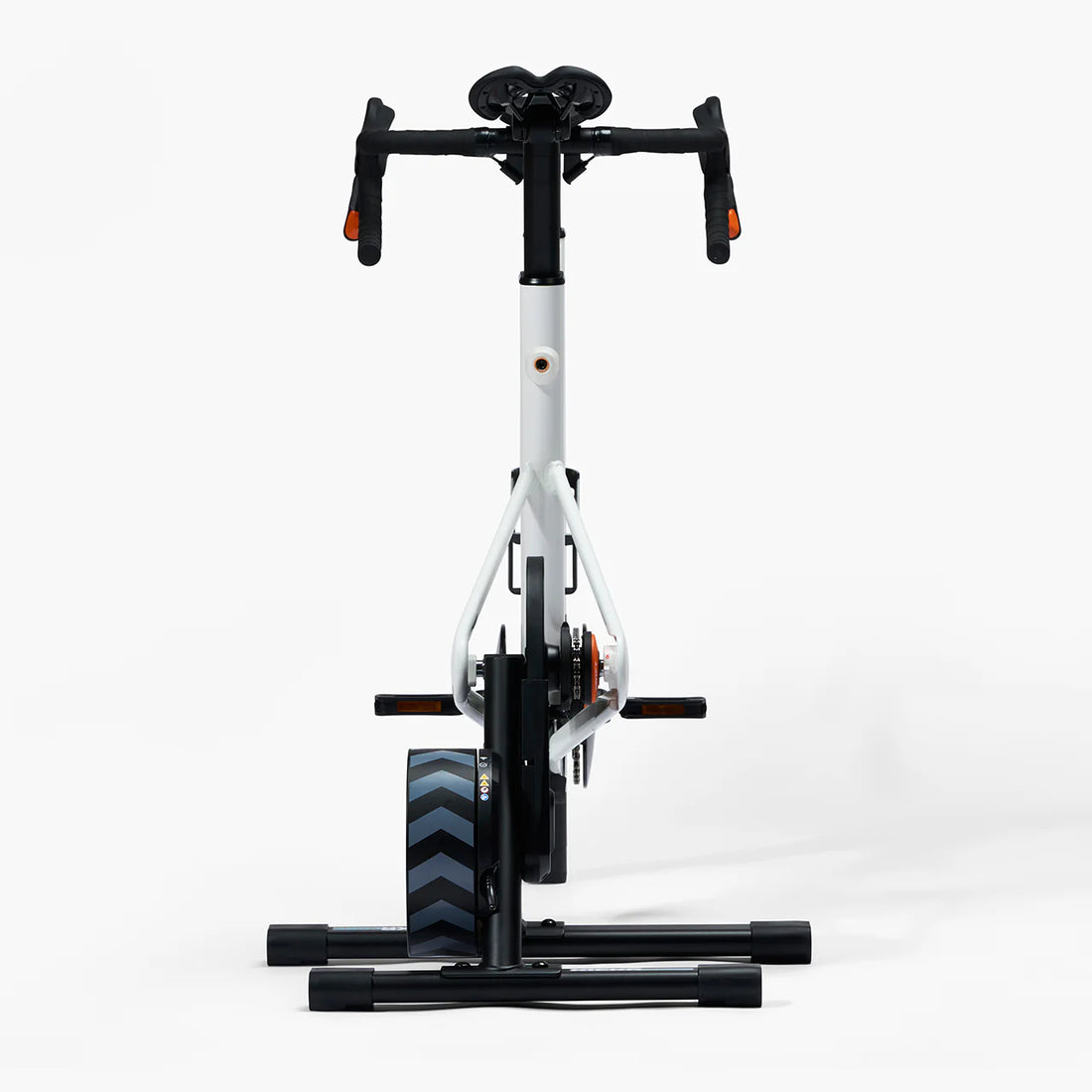

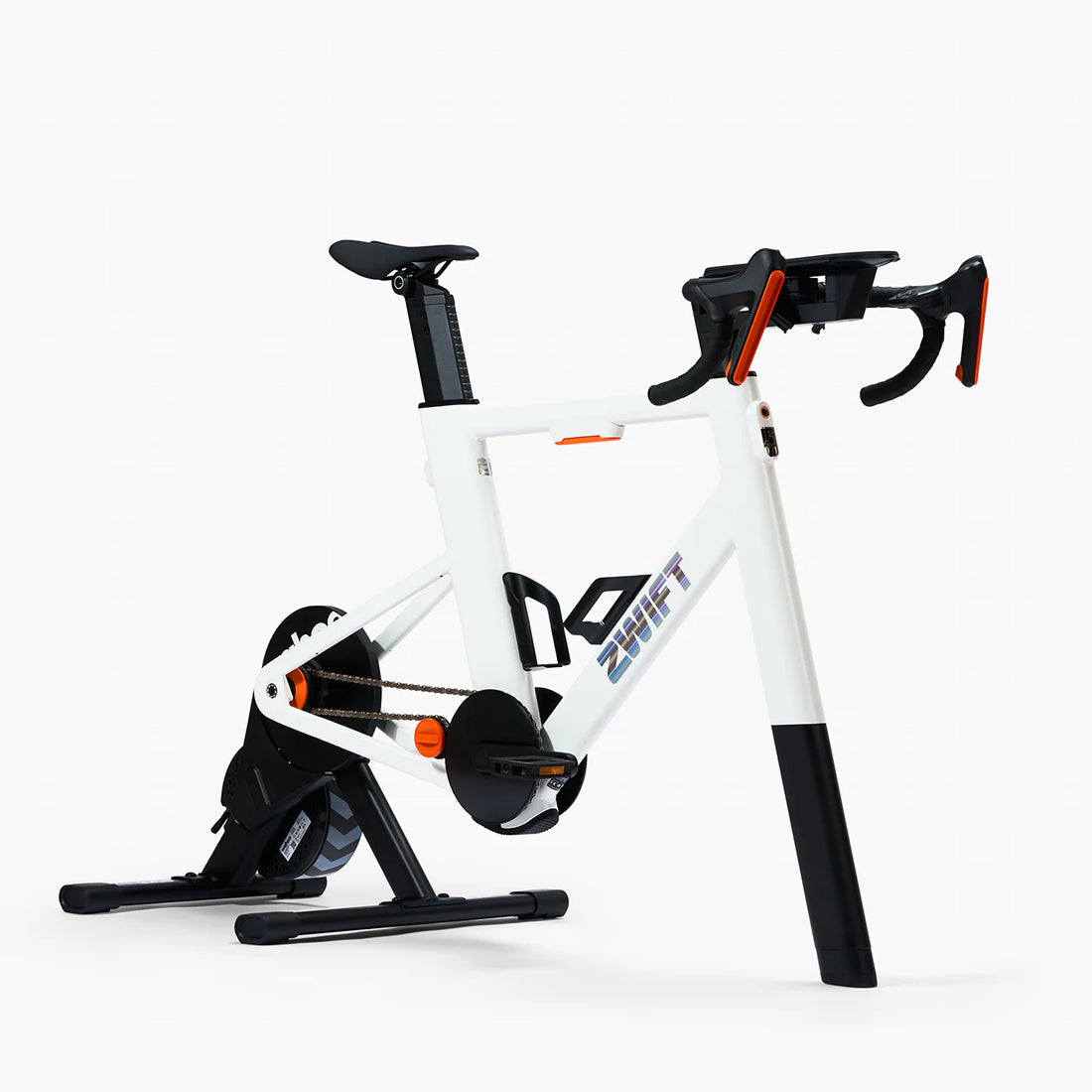

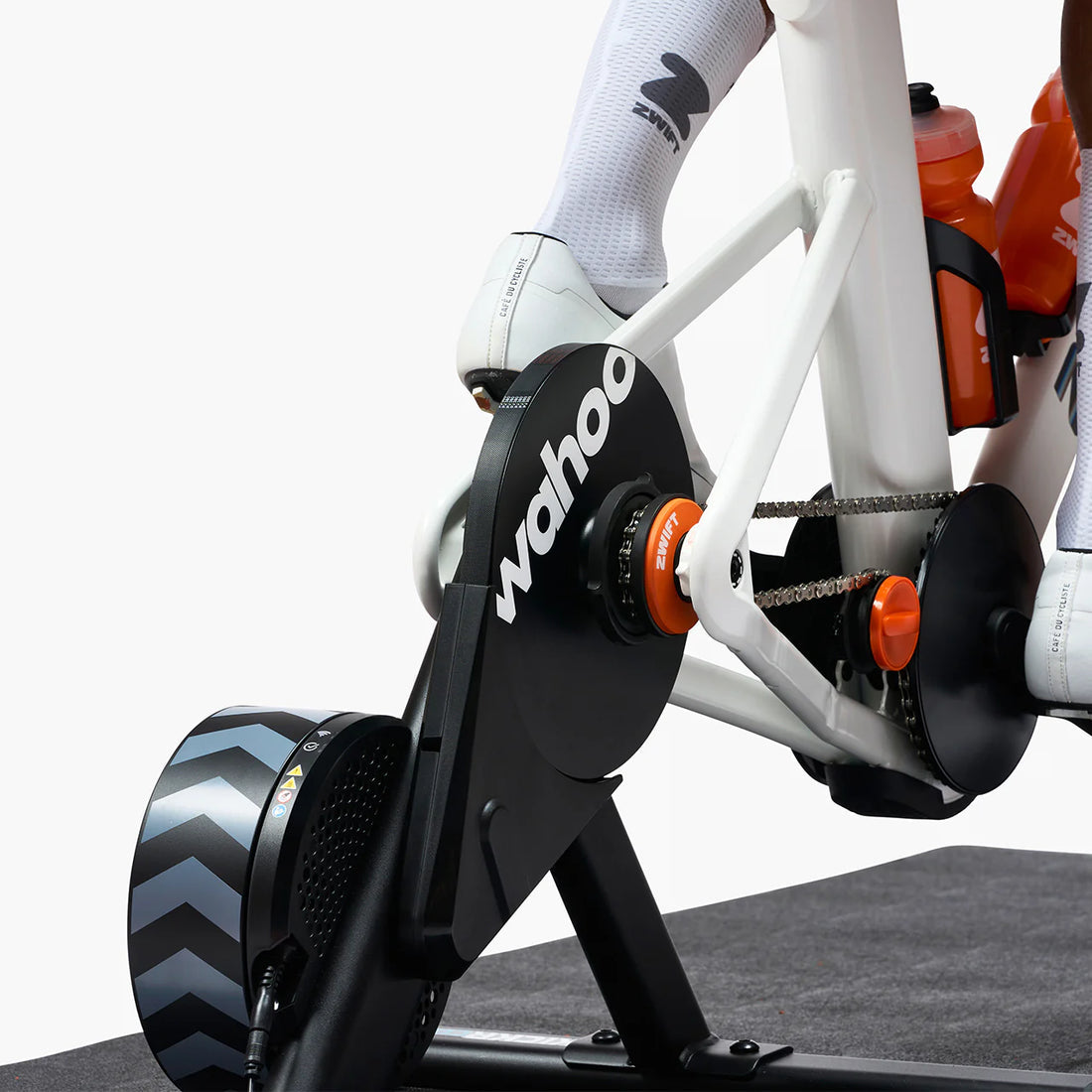

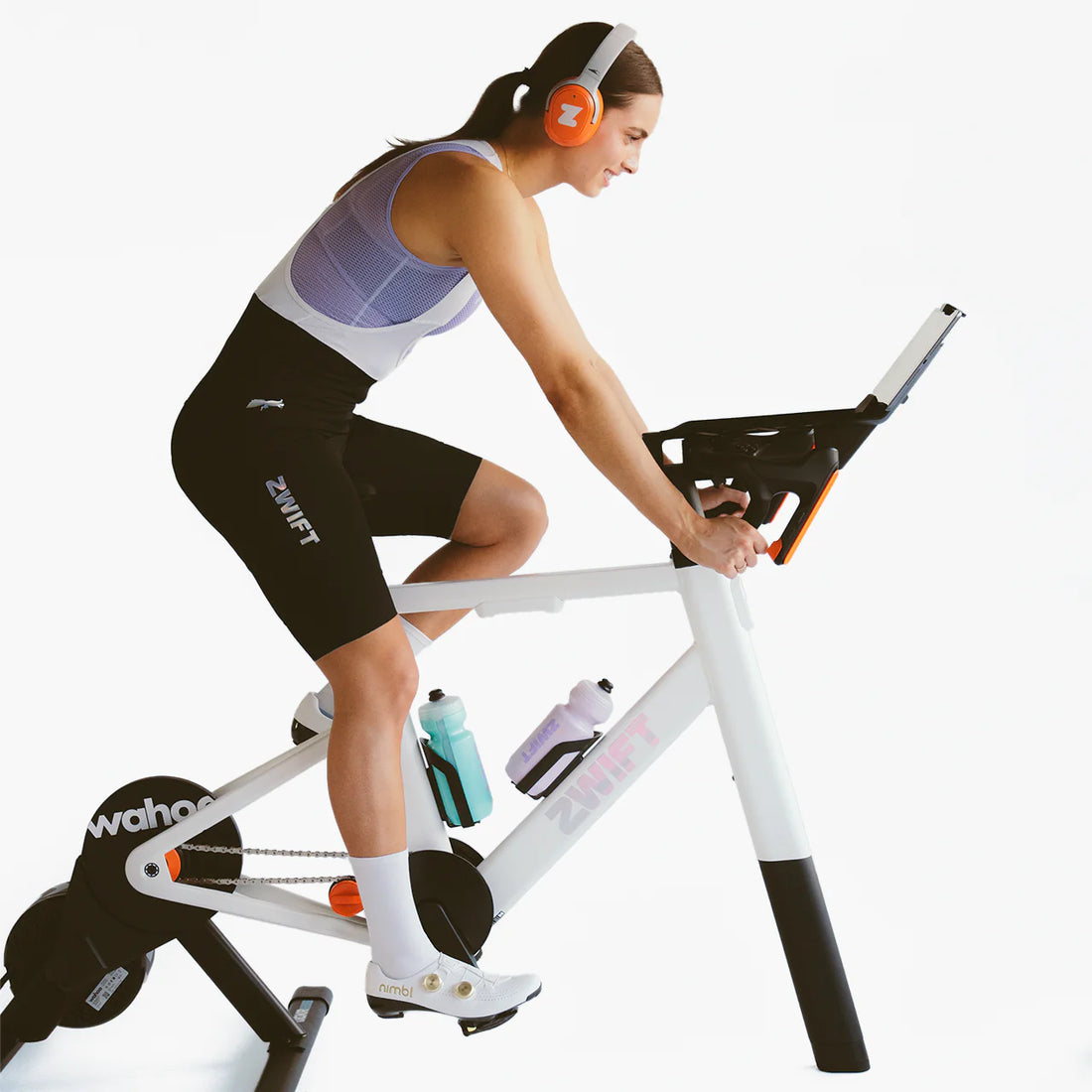

ZWIFT RIDE WITH KICKR CORE 2

Zwift Ride with KICKR CORE 2 offers an all-in-one, complete setup to unlock the best virtual experience in the worlds of Zwift. The proven KICKR CORE 2 smart trainer sets the foundation for responsive resistance and reliable power, paired with the Zwift Ride Smart Frame to enable seamless control of your Zwift riding experience at your fingertips.

Designed with simplicity in mind—a single tool that stows away on the frame is all it takes to assemble, dial in your bike fit, and adjust between users. Zwift Ride includes all of the hardware you need to get started on

Ride Real

In-game gradient changes automatically adjust the KICKR CORE’s resistance, so you’ll sweat it out on epic climbs and fly down descents just like you’re out on the road.

KICKR CORE 2 Features

Controlled resistance

When connected to your smartphone, tablet, computer or GPS bike computer, KICKR CORE 2 smart bike trainer automatically controls your resistance based on the software or route.

Power, speed, distance, and cadence

KICKR CORE provides these vital cycling metrics on your indoor ride.

WiFi & Bluetooth Connectivity

Faster, more stable app pairing with automatic firmware updates and improved device sync through the wifi connection.

KICKR Bridge

Streams data from heart rate monitors and other controllers directly through the trainer to your training app, reducing device conflicts.*

*Coming soon: KICKR BRIDGE support for Zwift Click v2 and Ride controllers.

Race Mode

Broadcasts power data up to 10x faster than the last CORE, for quicker responsiveness during hard accelerations.

Updated LED System

New multi-color LEDs provide real-time feedback on connection status, firmware update activity, and feature states.

What's Included

WAHOO KICKR CORE 2

Smart trainer with Zwift Cog

ZWIFT RIDE Smart Frame

Frame with integrated controllers

• Handlebar with Controllers
• Thru Axle
• Allen Key
• Phone Tray Mat
• Frame Key
• Left & Right Pedals
• Charging Cable for controllers
• Cable Tidie

Tech Specs

Rider Fit Specs

• Rider Fit Range: 5’ - 6’6”
• Saddle Height Min-Max: 59.9 cm-86.5cm (center bottom bracket to top of saddle)
• Stepover Height: 30 in
• Max Rider Weight: 260 lbs.
• Crank Length: 170mm

Product Dimensions and Frame Specs

• Product Dimensions: 135.9 cm L × 60.2 cm W
• Product Weight: 35.4 kg
• Drivetrain: Chain
• Pedals: Flat Included (compatible with standard road and mountain pedals)
• Saddle: 160mm W x 245mm L

Handlebar Specs

• Handlebar Height Min-Max: 34 - 40 in.
• Handlebar Width: 16.5 in / 42 cm (center to center)
• Integrated rechargeable controllers with 20 hrs. per charge
• Handlebar Controller Power: Built-in rechargeable lithium-ion battery (1050 mAH)
• Handlebar Controller Power requirements: USB-A, 5v, 1A

Performance and Data

• Power Accuracy: +/- 2%
• Maximum Power Output: 1800W
• Maximum Simulated Grade: 16%
• Resistance Type: Electromagnetic

Connectivity

• LED indicator lights confirm the trainer and handlebars are powered, connected, and transmitting via Bluetooth.
• Speed, distance, cadence, and power are wirelessly transmitted.
• In-game shifting, steering and UI control via handlebars are wirelessly transmitted.
• Apple TV users are required to pair through Zwift Companion app as a bridge to address the limited number of Bluetooth connections
