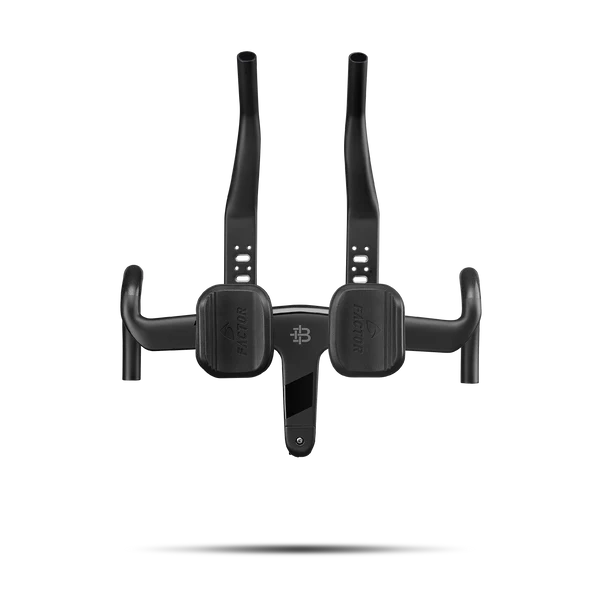

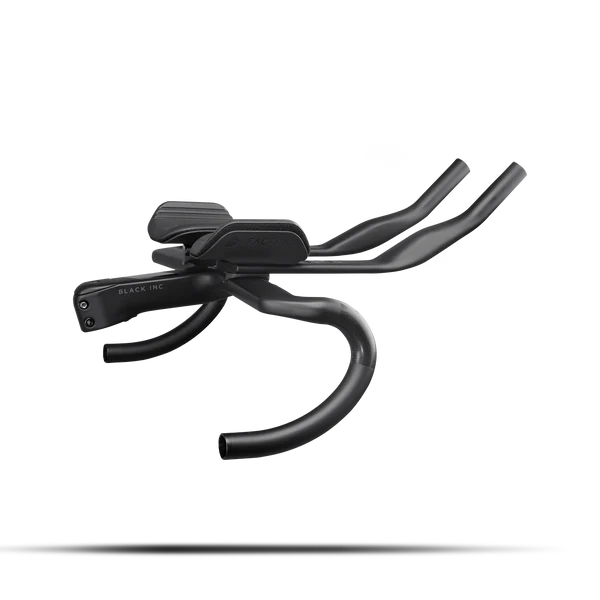

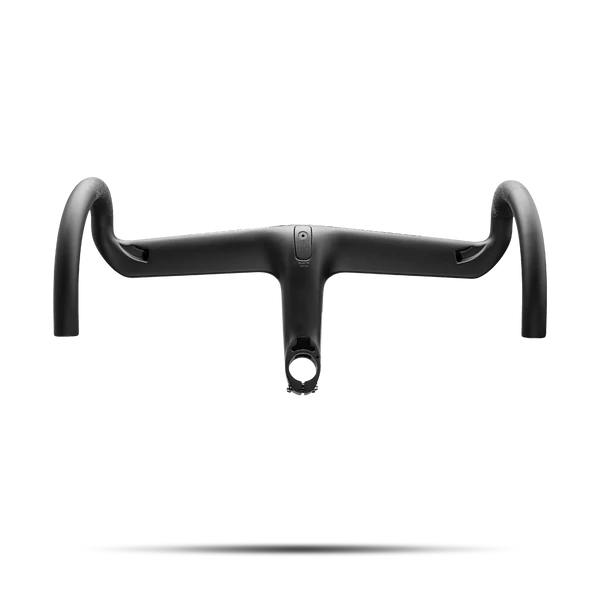

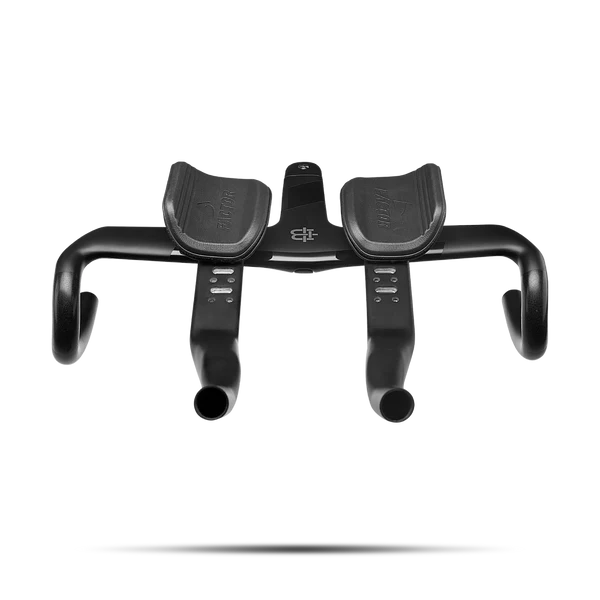

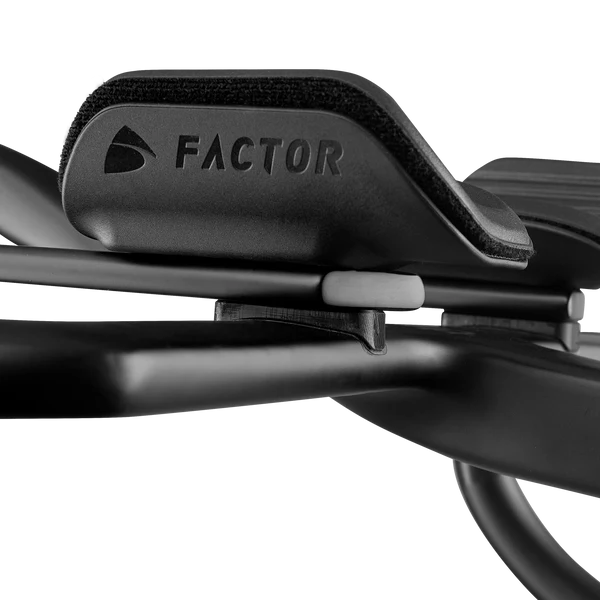

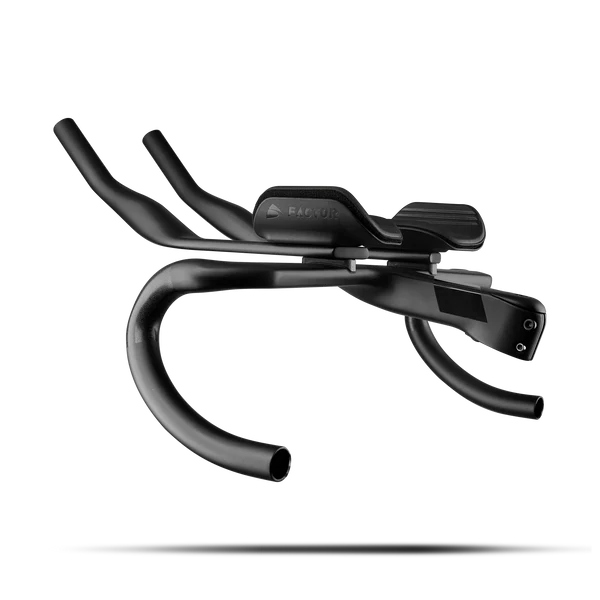

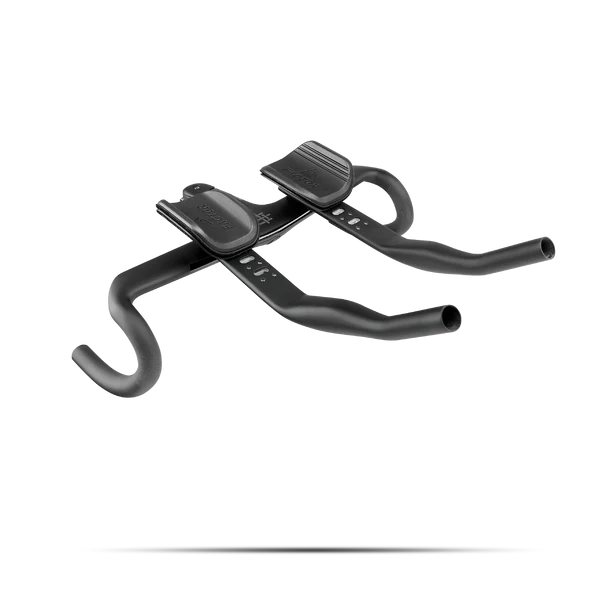

Black Inc Integrated Aero Carbon Barstem AB03

The Black Inc Integrated Aero Carbon Barstem AB03 is engineered for riders seeking aerodynamic efficiency, lightweight performance, and a clean integrated cockpit design for modern road bikes. Constructed using advanced carbon fibre technology, the AB03 combines the handlebar and stem into a single structure to reduce weight while improving overall stiffness and responsiveness.

The aerodynamic shaping of the barstem is designed to optimise airflow across the cockpit area, helping reduce drag and improve efficiency during high-speed riding. The integrated construction also enhances front-end rigidity, providing precise steering control and confident handling whether riding fast group rides or competitive road events.

Designed for modern road bikes with internal cable routing, the Black Inc AB03 integrated cockpit allows for a clean and streamlined setup that complements the aesthetics of high-performance road frames. Its ergonomic handlebar shape ensures comfort during long rides while maintaining a race-oriented riding position.

Carbon Precision

Advanced carbon fiber construction offers lightweight strength with exceptional durability.

Fit Flexibility

Adjustable extensions ensure a personalized cockpit for road, gravel, and triathlon performance.

Hidden Routing

Fully internal cable routing significantly improves aerodynamics while creating a sleek, streamlined, pro-level look.

Ergonomic Comfort

Refined ergonomic shaping supports natural hand positions, reducing fatigue and enhancing comfort on endurance rides.





Material

Carbon Fiber

Weight

438g (420x110mm) Excl. extension bars & Acces.

Angle

-6⁰

Drop

120mm

Reach

80mm

Stack

39mm

Flare (Drop Section)

7⁰

Backsweep (Top Section)

3⁰

Steerer Diameter

1-1/8"

Finish

UD Matt and Glossy

Internal Cable Routing

Electronic and Disc Brake System only
