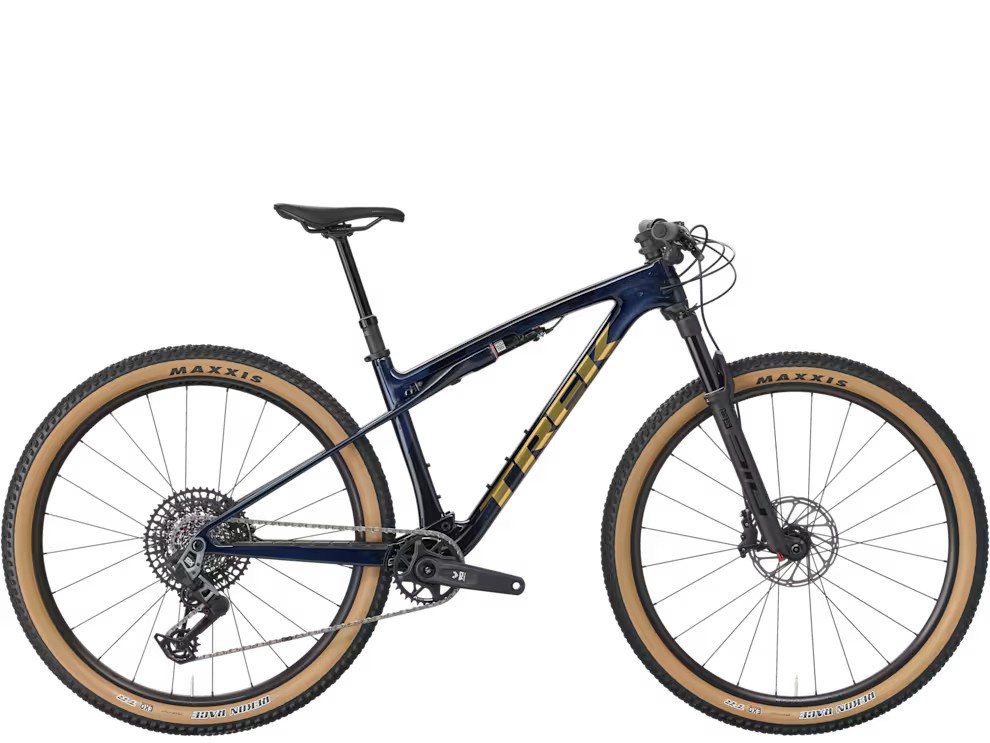

TREK SUPERCALIBER SL 9.7 GX AXS GEN 2

The Supercaliber SL 9.7 GX AXS is an ultralight carbon XC mountain bike that's ready to lay down rubber on race day. Its SL OCLV Mountain Carbon frame is as light as it is meticulous, with a high modulus lay-up that gives you all the stiffness you crave, and none of the weight. XC courses get rowdier every year, so it's equipped with a 110 mm fork and 80 mm of IsoStrut rear suspension to smooth your roll without kicking pedalling efficiency to the wind. It's all topped off with a carbon cockpit and SRAM's wireless GX AXS Transmission.







Frame & Suspension

Frame

• Material: SL OCLV Mountain Carbon
• IsoStrut integrated rear suspension system
• UDH (Universal Derailleur Hanger)
• Internal cable routing
• Rear Travel: 80 mm

Fork

• Model: RockShox SID
• DebonAir air spring
• Rush RL damper
• Remote lockout
• Tapered steerer
• 44 mm offset
• Boost 110 spacing
• 15 mm Maxle Stealth thru-axle
• Travel: 110 mm

Rear Shock

• Trek IsoStrut with RockShox SIDLuxe
• 2-position remote damper

---

Weight

• Weight (Size M): 12.18 kg (26.86 lbs)
• Weight includes TLR sealant, without tubes
• Maximum System Weight: 136 kg (300 lbs)

---

Wheels & Tyres

Wheelset

• Front Wheel: Bontrager Kovee Comp 25
  • Tubeless Ready
  • 6-bolt rotor mount
  • Boost 110
  • 15 mm thru-axle
  • 29"
• Rear Wheel: Bontrager Kovee Comp 25
  • Tubeless Ready
  • Rapid Drive 108 hub
  • Boost 148
  • 12 mm thru-axle
  • 29"

Rear Axle

• Bontrager Switch thru-axle with removable lever

Tyres

• Maxxis Rekon Race
• Tubeless Ready
• EXO casing
• Folding bead
• 60 TPI
• 29×2.40"

Tubeless Setup

• Bontrager TLR rim strips
• Bontrager TLR sealant (180 ml / 6 oz)

Maximum Tyre Clearance

• Frame: 29×2.40"
• Fork: As specified by fork manufacturer

---

Electronic System

Battery

• SRAM AXS rechargeable battery pack
• Charger included

---

Drivetrain

Shifter

• SRAM AXS Pod Controller

Rear Derailleur

• SRAM GX Eagle AXS T-Type

Crankset

• SRAM Eagle 90 T-Type
• DUB spindle
• 34T chainring
• 55 mm chainline
• 170 mm crank length

Bottom Bracket

• SRAM DUB
• 92 mm PressFit

Cassette

• SRAM Eagle XS-1275 T-Type
• 10–52T
• 12-speed

Chain

• SRAM GX Eagle T-Type
• 12-speed

Chainring Compatibility

• Minimum: 30T
• Maximum: 38T

---

Components

Saddle

• Verse Short Elite
• Hollow magnesium rails
• 145 mm width

Dropper Post

Features

• Bontrager Line Dropper
• MaxFlow technology
• Internal cable routing
• 31.6 mm diameter

Handlebar

Stem

Specifications

• Bontrager Elite
• 35 mm clamp diameter
• 13° rise

Headset

• FSA IS-2
• 1-1/8" upper bearing
• 1.5" lower bearing

---

Braking System

Brakes

• SRAM Motive Bronze Stealth
• 4-piston hydraulic disc brakes

Rotors

• SRAM CenterLine
• 6-bolt mounting
• Rounded-edge design

Maximum Rotor Size

• Frame: 160 mm rear
• Fork: Refer to fork manufacturer specifications

---

Accessories

Included Tool

• Bontrager Switch thru-axle with removable lever

---

Key Features

• Lightweight SL OCLV Mountain Carbon frame
• IsoStrut integrated rear suspension with 80 mm travel
• RockShox SID fork with 110 mm travel
• Wireless SRAM GX Eagle AXS T-Type electronic shifting
• SRAM Eagle 90 crankset with 34T chainring
• Carbon Bontrager handlebars
• Bontrager Kovee Comp 25 tubeless-ready wheels
• Rapid Drive 108 rear hub for fast engagement
• SRAM Motive Bronze Stealth 4-piston brakes
• Factory-installed dropper post
• Race-focused XC geometry with modern trail capability
• Weight of just 12.18 kg (Size M)

Supercaliber Gen 2 Size Chart
