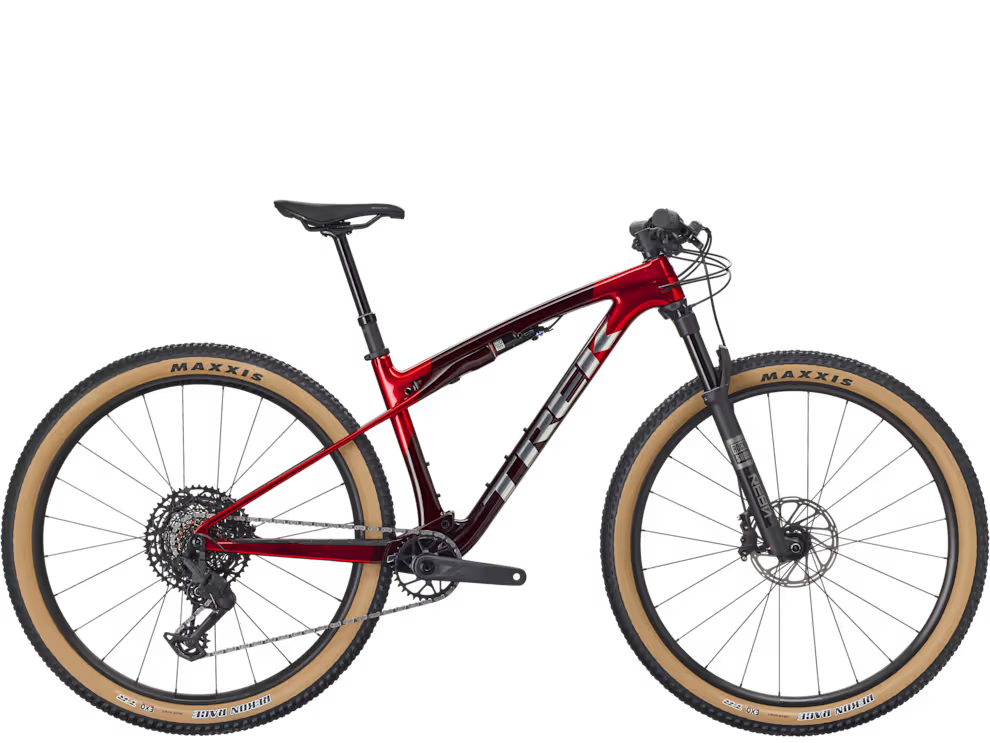

TREK SUPERCALIBER SL 9.6 GEN 2

The Supercaliber SL 9.6 is a carbon cross-country mountain bike built for rocketing over singletrack and scorching the way to the finish line. It's built with a carbon frame that balances stiffness with compliance for power when you need it most, while IsoStrut rear suspension gives you just enough squish to soften the blow through the rough terrain peppering modern XC courses. It comes ready to rip with a 12-speed SRAM Eagle transmission, so you've got a gear for every climb and breakaway.



Frame & Suspension

Frame

• Material: SL OCLV Mountain Carbon
• IsoStrut integrated rear suspension
• UDH (Universal Derailleur Hanger)
• Internal cable routing
• Rear travel: 80 mm

Fork

• Model: RockShox Reba RL
• DebonAir air spring
• Motion Control damper
• Remote lockout
• Tapered steerer
• 44 mm offset
• Boost 110 spacing
• 15 mm Maxle Stealth thru-axle
• Travel: 110 mm

Rear Shock

• Trek IsoStrut with RockShox SIDLuxe
• 2-position remote damper

Suspension Control

• Bontrager Drop Lock remote

---

Weight

• Weight (Size M): 12.93 kg (28.51 lbs)
• Includes TLR sealant, no tubes
• Maximum System Weight: 136 kg (300 lbs)

---

Wheels & Tyres

Wheelset

• Front Wheel: Bontrager Kovee Comp 25
  • Tubeless Ready
  • 6-bolt rotor mount
  • Boost 110
  • 15 mm thru-axle
  • 29"
• Rear Wheel: Bontrager Kovee Comp 25
  • Tubeless Ready
  • Rapid Drive 108 hub
  • Boost 148
  • 12 mm thru-axle
  • 29"

Rear Axle

• Bontrager Switch thru-axle with removable lever

Tyres

• Maxxis Rekon Race
• Tubeless Ready
• EXO casing
• Folding bead
• 60 TPI
• 29×2.40"

Tubeless Setup

• Bontrager TLR rim strips
• Bontrager TLR sealant (180 ml / 6 oz)

Maximum Tyre Clearance

• Frame: 29×2.40"
• Fork: As specified by fork manufacturer

---

Drivetrain

Shifter

• SRAM Eagle 70, 12-speed

Rear Derailleur

• SRAM Eagle 70 T-Type

Crankset

• SRAM Eagle 70 T-Type
• DUB spindle
• 32T chainring
• 55 mm chainline
• 170 mm crank length

Bottom Bracket

• SRAM DUB
• 92 mm PressFit

Cassette

• SRAM Eagle XS-1270 T-Type
• 10–52T
• 12-speed

Chain

• SRAM Eagle 70 T-Type
• 12-speed

Chainring Compatibility

• Maximum: 38T
• Minimum: 30T

---

Components

Saddle

• Verse Short Comp
• Steel rails
• 145 mm width

Dropper Post

Features

• Bontrager Line Dropper
• MaxFlow design
• Internal routing
• 31.6 mm diameter

Handlebar

Grips

• Trek Line Comp nylon lock-on grips

Stem

Stem Features

• Blendr-compatible
• 31.8 mm clamp
• 7° rise

Headset

• FSA IS-2
• 1-1/8" upper bearing
• 1.5" lower bearing

---

Braking System

Brakes

• SRAM DB6 hydraulic disc brakes
• 4-piston calipers

Rotors

• SRAM CenterLine 2.0
• 6-bolt mounting

Maximum Rotor Size

• Frame: 160 mm rear
• Fork: Refer to fork manufacturer

---

Accessories

Included Tool

• Bontrager Switch thru-axle with removable lever

---

Key Features

• Lightweight SL OCLV Mountain Carbon frame
• Integrated IsoStrut rear suspension system
• 110 mm front / 80 mm rear travel
• SRAM Eagle 70 T-Type wireless-ready drivetrain platform
• Bontrager Kovee Comp 25 tubeless-ready wheelset
• Rapid Drive 108 rear hub engagement
• SRAM DB6 4-piston hydraulic brakes
• Factory-installed dropper post
• XC race geometry with trail-bike capability
• Maxxis Rekon Race 29×2.40" tyres

Size Chart (Supercaliber Gen 2)
