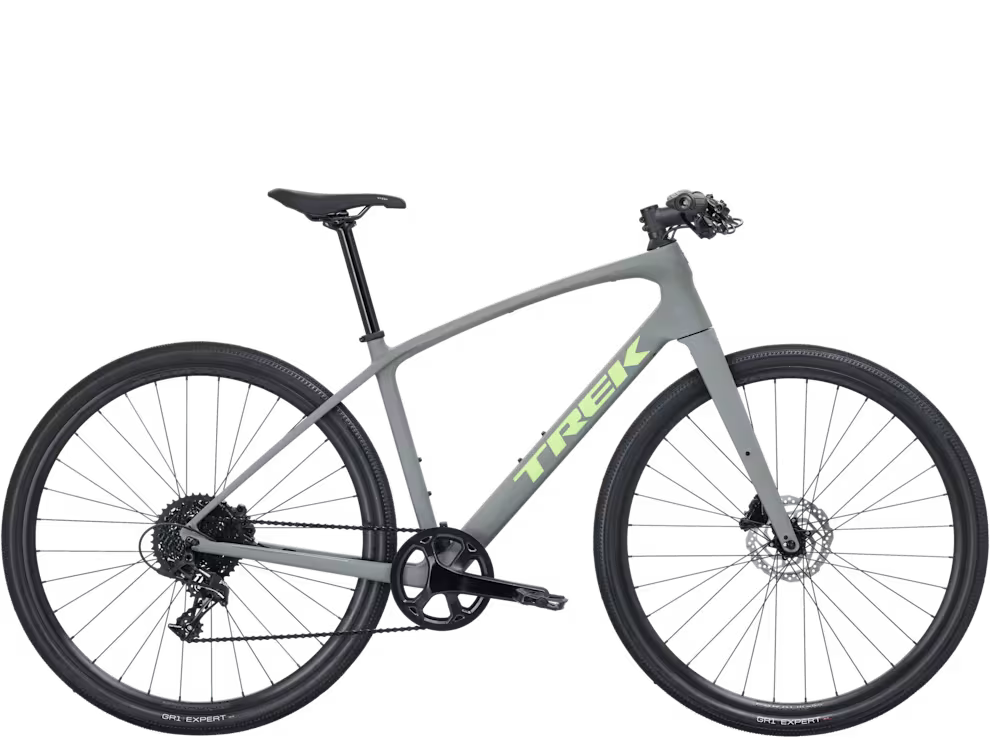

TREK FX SPORT SL 5

FX Sport SL 5 is a carbon fibre fitness bike for riders who want the speed of a lightweight road bike with the comfort and control of a flat handlebar. It has an upgraded high-quality drivetrain, hydraulic disc brakes and tubeless-ready rims making it perfect for everything from solo workouts to speedy group rides.

If you want to present those details in a clean Specifications section, you can format them like this:

Specifications

Frame & Fork

• Frame: 400 Series OCLV Carbon, internal cable routing, 3S chain keeper, DuoTrap S compatible, mudguard mounts, flat-mount disc brakes, 135×5 mm ThruSkew

• Fork: Carbon, hidden mudguard mounts, flat-mount disc brakes, 100×5 mm thru-skew

Weight

• Weight (Size M): 10.60 kg (23.37 lbs)

• Maximum System Weight: 136 kg (300 lbs) including bicycle, rider, and cargo

Drivetrain

• Shifters: SRAM Apex, 11-speed

• Rear Derailleur: SRAM Apex 1, long cage, compatible with up to 42T cassette

• Crankset: Prowheel alloy, 42T narrow-wide chainring, 175 mm crank arms

• Cassette: microSHIFT XLE, 11–42T, 11-speed

• Chain: KMC X11

• Pedals: Bontrager City pedals

• Maximum Chainring Size:

  • 1x: 44T

  • 2x: 46/32T

Wheels & Tyres

• Front Hub: Formula CL-51 alloy, 100×5 mm

• Rear Hub: Formula CL-52 alloy, 135×5 mm

• Front Skewer: 135×5 mm bolt-on

• Rear Skewer: 169×5 mm bolt-on

• Rims: Bontrager Paradigm, Tubeless Ready, 32-hole, 21 mm internal width, Presta valve

• Spokes: 14g stainless steel, black

• Tyres: Bontrager GR1 Expert, Hard-Case Lite, wire bead, 60 TPI, 700×40c

• Maximum Tyre Clearance: 700×42 mm

Components

• Seatpost: Bontrager Comp, 6061 alloy, 27.2 mm diameter, 8 mm offset, 330 mm length

Handlebar

• Size S: Bontrager alloy, 31.8 mm clamp, 15 mm rise, 600 mm width

• Sizes M/L: Bontrager alloy, 31.8 mm clamp, 15 mm rise, 660 mm width

Stem

• Sizes S/M: Bontrager Elite, Blendr-compatible, 31.8 mm clamp, 7° rise, 100 mm length

• Size L: Bontrager Elite, Blendr-compatible, 31.8 mm clamp, 7° rise, 110 mm length

• Grips: Trek Ergonomic PRO, lock-on

Brakes

• Brake Set: Shimano hydraulic disc brakes (MT201 levers, UR300 calipers)

• Rotors: Shimano RT10 CenterLock, 160 mm

• Maximum Rotor Size: 160 mm front and rear

Features

• Carbon frame and fork

• Internal cable routing

• Flat-mount hydraulic disc brakes

• Tubeless-ready wheelset

• Mudguard/fender mounts

• DuoTrap S sensor compatibility

• Gravel-ready geometry with clearance for up to 700×42 mm tyres

• SRAM Apex 1×11 drivetrain with 42T chainring and 11–42T cassette
