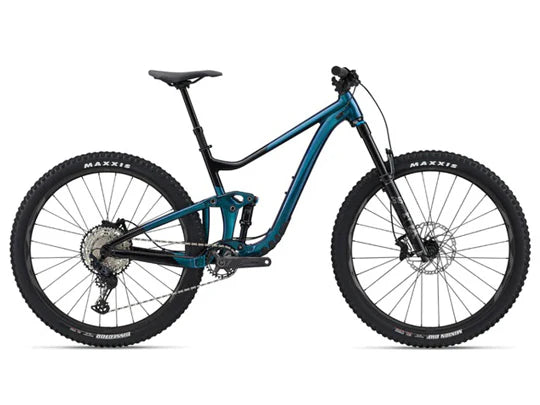

Trance X 29 1

29er confidence and control

29-inch wheels optimized to roll over technical terrain with balance and stability, giving you more momentum on tricky climbs and confidence to fly on fast singletrack descents. Added clearance for up to 2.5-inch tires.

Progressive suspension

Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 135mm of full rear-wheel travel (and 150mm up front), it features an Advanced Forged Composite upper rocker arm for increased stiffness and strength plus lower overall frame weight.

Adjustable geometry

A flip chip lets you change the headtube and seattube angles, along with the bottom bracket height, to fine-tune the handling. You can choose the low position (65.5/77.2 head/seattube angle and 40mm BB drop) for fast, open terrain, or high (66.2/77.9 head/seattube angle and 30mm drop) for slower, tighter singletrack.

• Sizes
  S,M
• Colours
  Chameleon Blue
• Frame Material
  Aluxx SL-Grade Aluminum front and rear triangles Maestro Suspension with flip chip 135mm travel 12x148mm thru-axle
• Tire
  [F] Maxxis Minion DHF 29x2.5WT, 60 TPI, EXO, TR, TR [R] Maxxis Dissector 29x2.4WT, Tubeless tires
• Tire Size
  29
• Tire Size - Measuring Unit
  Inches
• Gear
  12
• Fork
  Fox 36 Float Performance 150mm Travel Grip Damper Boost 15x110 Kabolt X Tapered
• Stem
  Giant Contact SL 35 Diameter 35mm
• Headset
  -
• Front Derailleur
  -
• Handlebar
  Giant Contact TR35 780x35mm 20mm rise AL6061
• Seatpost
  GIANT Contact Switch dropper post with remote lever 30.9mm
• Shifters
  Shimano SLX M7100 1x12
• Rear Derailleur
  Shimano SLX M7100 Shadow +
• Grip
  120mm S/M, 130mm L/XL, NEW Trail Grip, size L/XL 130mm Giant Tactal Pro Single Lock-On Grips, size S/M 120mm, VLG 2000
• Shock
  Fox Float DPS Performance Trunnion Mount 185x55 custom tuned for Giant
• Crankset
  Shimano M511 boost 30T 52mm chainline
• Saddle
  Giant Romero
• Pedals
  AL Body/AL Cage Platfrom(GC GT)
• Brakes
  Tektro Orion HD-M475 4 piston hydraulic disc brakes [F]203mm, [R]180mm rotors
• Hubs
  Giant Boost, sealed bearing
• Cassette
  Shimano SLX M7100 10x51
• Brake levers
  Tektro Orion HD-M745
• Spoke
  -
• Chain
  KMC X-12
• Rims
  GIANT AM 29 tubeless ready sleeve-joint rim 30mm inner width
• Bottom Bracket
  Shimano PressFit
• Domestic Warranty
  1
• Domestic Warranty
  - Measuring Unit
  Year
• International Warranty
  1
• International Warranty
  - Measuring Unit
  Year
• Sales Package
  Cycle
• Ideal For
  All Cycling Enthusiast - Carbon Bike

*All specifications and prices listed are subject to change without notice.
