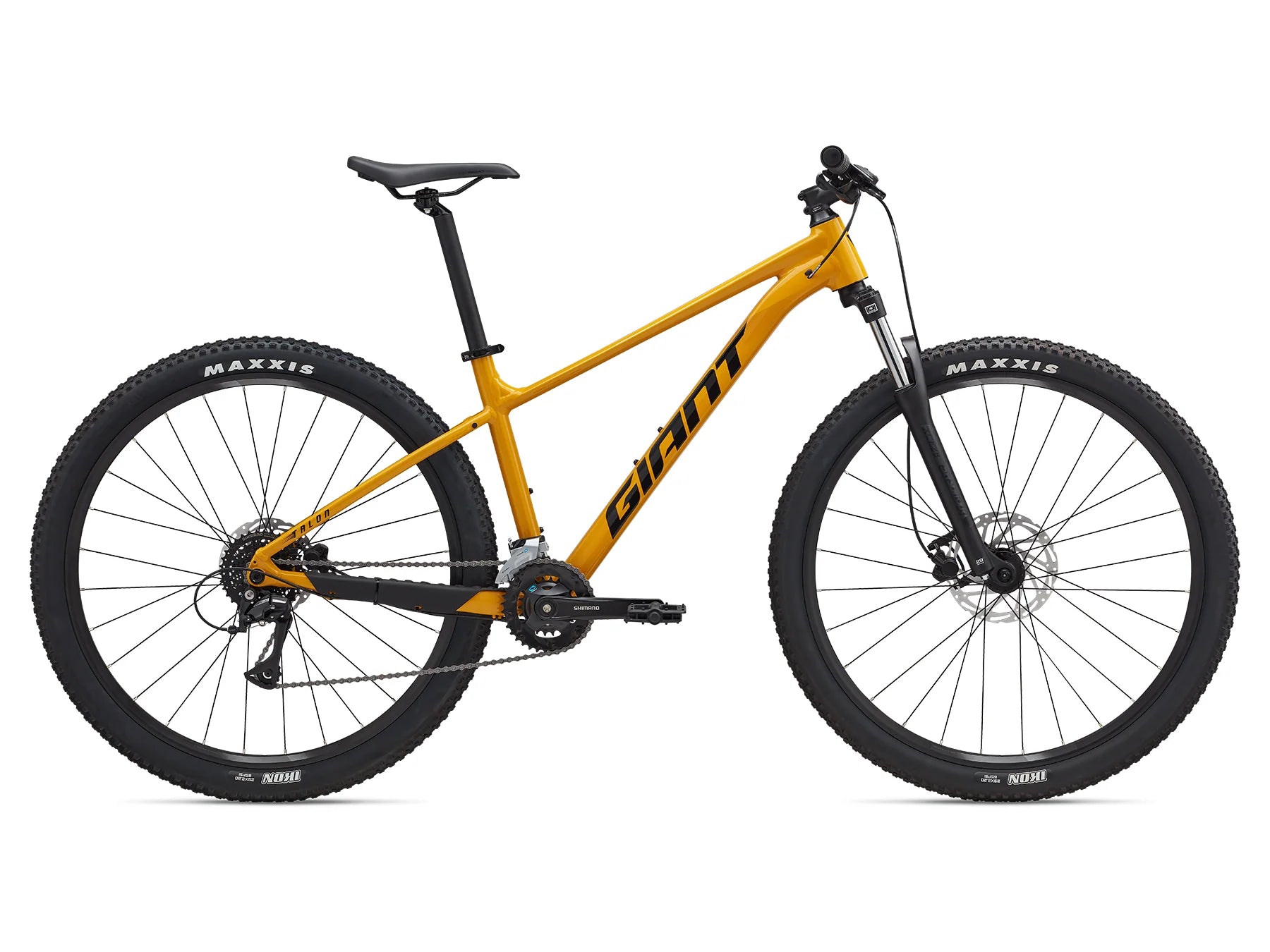

Talon 29 3 - Beeswax

Modern MTB Design

Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models

Off-Road Control

New geometry is optimized for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tires (up to 2.4-inch) for traction and grip on technical terrain.

Light and Durable

All-new ALUXX aluminum frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.

• Sizes
  S, M, L
• Colours
  Beeswax,Frost Silver,Panther
• Frame Material
  ALUXX-grade aluminum, disc
• Tire
  Maxxis Ikon 27.5x2.2 or Maxxis Ikon 29x2.2, wire bead
• Tire Size
  2.4"
• Tire Size - Measuring Unit
  MM
• Fork
  SR Suntour XCE, QR, steel steerer XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29)
• Stem
  Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (29)
• Headset
  H868G - Straight
• Front Derailleur
  Shimano Altus
• Handlebar
  Giant Connect Trail, 31.8mm XS: 690mm (27.5) S: 690mm (27.5) / 750mm (29) M: 780mm (29)
• Seatpost
  Giant Sport, 30.9 XS: 350mm (27.5) S: 350mm (27.5) / 375mm (29) M: 375mm (29)
• Shifters
  Shimano Altus, 2x8
• Rear Derailleur
  Shimano Acera
• Grip
  Giant Sole-O Grip
• Crankset
  Shimano Altus FC-M315, 22/36 XS: 170mm (27.5) S: 165mm (27.5) / 170mm (29) M: 175mm (29)
• Saddle
  Giant ErgoContact Trail
• Pedals
  MTB caged
• Brakes
  Tektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm
• Hubs
  alloy, sealed bearing, [F] 15x110 thru axle, [R] 12x142 thru-axle
• Cassette
  Shimano Altus HG200, 11x34
• Brake levers
  Tektro HDC M275
• Spoke
  stainless, 14g
• Chain
  KMC 8.3
• Rims
  Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width
• Bottom Bracket
  cartridge

*All specifications and prices listed are subject to change without notice.
