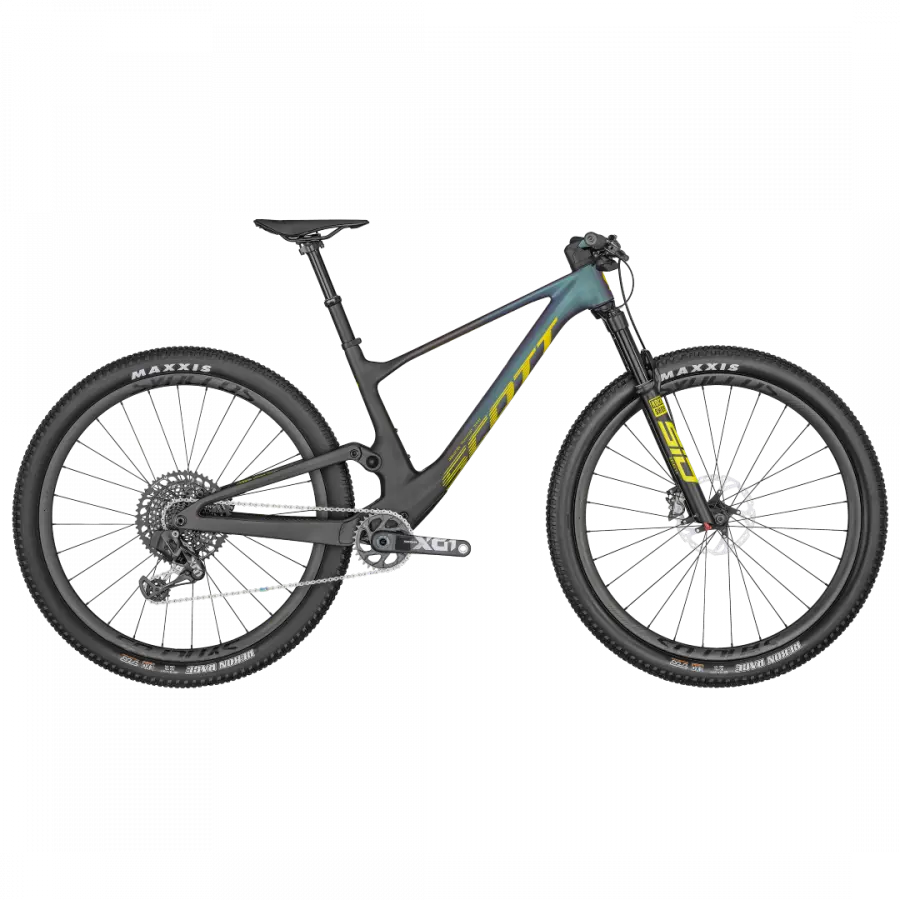

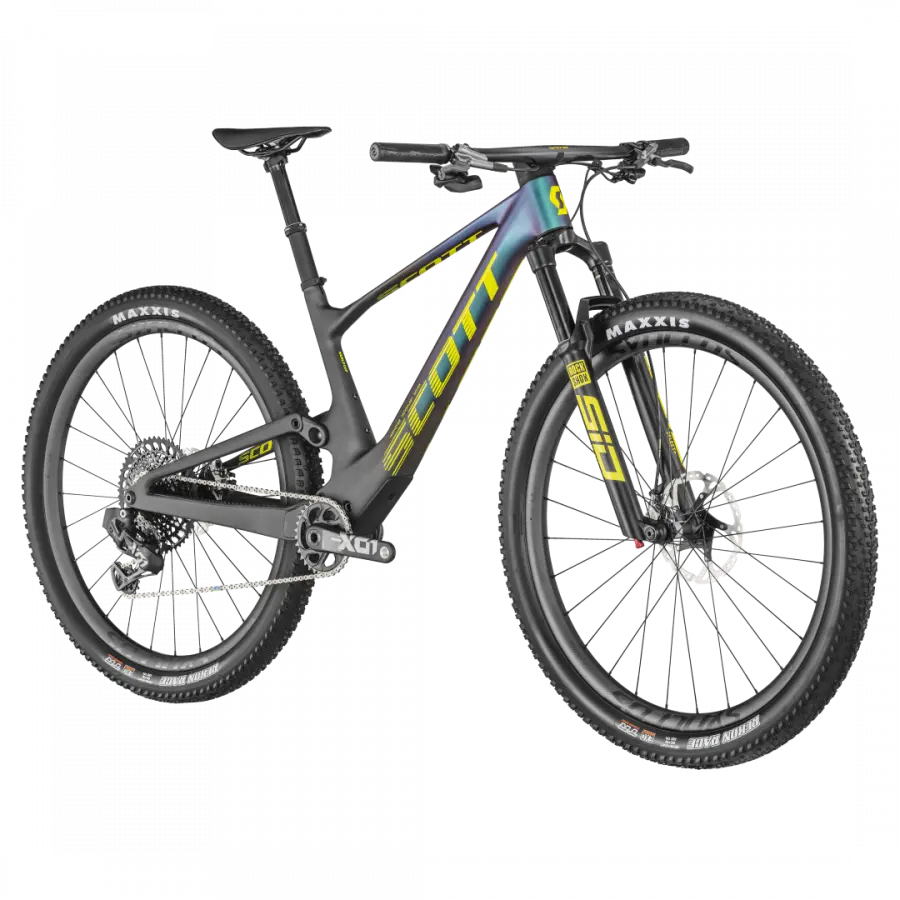

SCOTT SPARK RC WORLD CUP AXS FULL SUSPENSION MOUNTAIN BIKE

Key features

• Living up to the Spark RC name is no easy task, but this new version does so with flying colors. The all new Spark RC lineups are comprised of bikes that just have one thing on the agenda, pure race speed. Ultra-light, ultra-integrated, and ultra-capable, this new breed of Cross-Country race bike is like no other seen before
• The ALL NEW Spark RC World Cup AXS is the perfect blend of top-notch carbon engineering, never before seen levels of integration and just the right amount of secret sauce. We wanted to make this platform faster than ever before both up and down the hill. Increasing travel, perfecting geometry, and applying input from the world's best athletes, we've created the cross country race bike of all cross country race bikes. If you think fast is fun, then you're going to love this ride.

Frame & Suspension

• Frame: Spark RC Carbon HMX
  • Integrated Suspension Technology
  • Flex Pivot, adjustable head angle
  • Syncros Cable Integration System
  • BB92 / UDH Interface / 12x148mm / 55mm chainline
• Fork: RockShox SID Select+ RL3 Air
  • Custom Charger 3-mode damper
  • 15x110mm Maxle Stealth, 44mm offset, tapered steerer
  • Lockout & rebound adjustment
  • 120mm travel
• Rear Shock: RockShox NUDE 5 RL3 Trunnion (SCOTT custom)
  • Travel & geometry adjustment
  • 3 modes: Lockout / Traction Control / Descend
  • DebonAir, rebound adjustment
  • Travel: 120mm / 80mm / Lockout (165x45mm)
• Remote System: SCOTT TwinLoc 2 Technology
  • Suspension & dropper remote
  • 3 suspension modes

Drivetrain (Wireless Electronic)

• Rear Derailleur: SRAM X01 Eagle AXS, 12-speed
• Shifter: SRAM GX Eagle AXS Rocker Controller
• Crankset: SRAM X01 Eagle Carbon (DUB), 32T, 55mm chainline
• Bottom Bracket: SRAM DUB PF92 MTB Wide (41x92mm)
• Chain: SRAM X01 Eagle
• Cassette: SRAM X01 XG-1295, 10–52T

Brakes

• Brakes: Shimano XTR M9100 hydraulic disc
• Rotors: Shimano SM-RT76 (6-bolt)
  • 180mm (Front) / 160mm (Rear)

Cockpit

• Handlebar: Syncros Fraser iC SL XC Carbon
  • -12° rise, 8° backsweep, 740mm width
• Grips: Syncros Pro lock-on

Seat & Post

• Seatpost: FOX Transfer SL Performance Elite dropper, 31.6mm, 100mm travel
• Saddle: Syncros Belcarra Regular 1.5, titanium rails

Headset

• Headset: Syncros / Acros angle-adjust & cable routing system
  • ±0.6° head angle adjustment
  • ZS56/28.6 – ZS56/40 MTB

Wheelset & Tires

• Wheelset: Syncros Silverton 1.0-30 (Carbon)
  • Front: 15x110mm
  • Rear: 12x148mm, XD driver
  • 30mm tubeless-ready carbon rims, 28H
  • DT Swiss ratchet hubs
  • SRAM TyreWiz ready
  • Syncros SL axle with removable lever (6mm Allen, T30 & T25 tools)
• Tires: Maxxis Rekon Race, 29x2.4", 120TPI
  • Tubeless ready, EXO (front & rear)

Weight & Capacity

• Approx. Weight: 10.7 kg (23.59 lbs, tubeless setup)
• Max System Weight: 128 kg
  (Includes bike, rider, equipment, and luggage)

Additional Information

• Country of Origin: Taiwan
