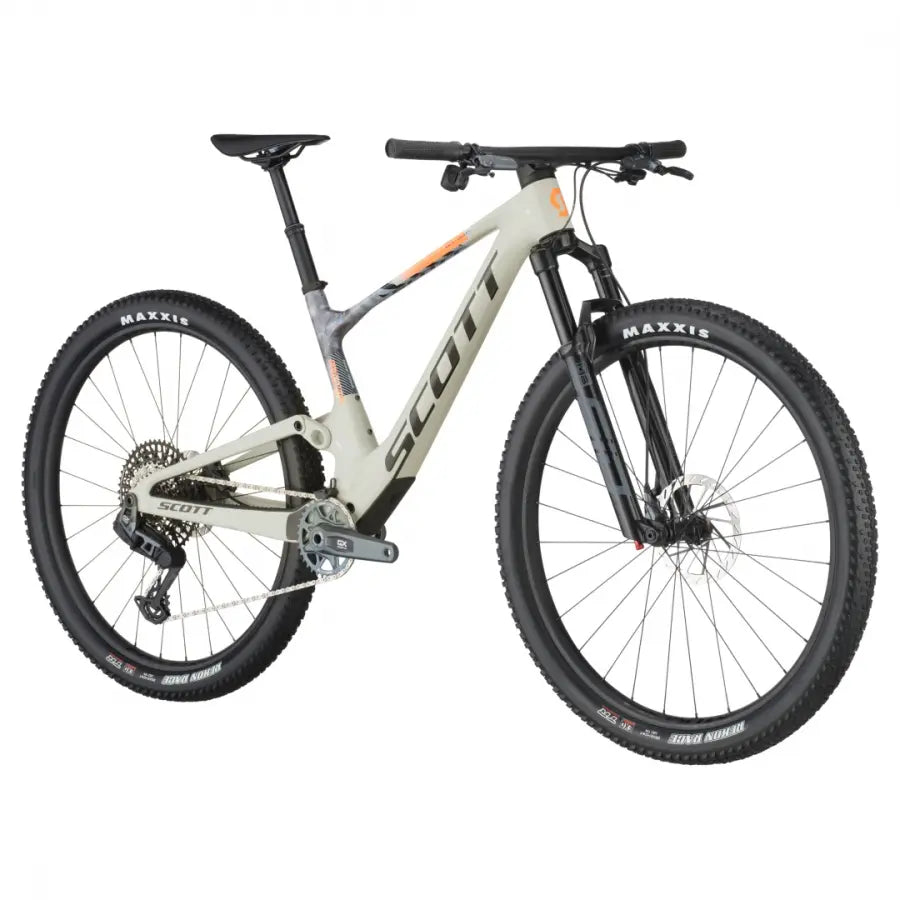

SCOTT SPARK RC TEAM ISSUE CARBON HARDTAIL MOUNTAIN BIKE

Key features

• The Spark RC Team Issue is the perfect blend of top-notch carbon engineering, never before seen levels of integration and just the right amount of secret sauce. We wanted to make this platform faster than ever before both up and down the hill. Increasing travel, perfecting geometry, and applying input from the world's best athletes, we've created the cross country race bike of all cross country race bikes. If you think fast is fun, then you're going to love this ride.

Frame & Suspension

• Frame: Spark RC Carbon HMF
  • Integrated Suspension Technology
  • Flex Pivot, adjustable head angle
  • Syncros Cable Integration System
  • BB92 / UDH Interface / 12x148mm / 55mm chainline
• Fork: RockShox SID Select 3P Air
  • Charger RL 3-mode damper
  • 15x110mm Maxle Stealth, 44mm offset, tapered steerer
  • Lockout & rebound adjustment
  • 120mm travel
• Rear Shock: RockShox NUDE 5 RL3 Trunnion (SCOTT custom)
  • Travel & geometry adjustment
  • 3 modes: Lockout / Traction Control / Descend
  • DebonAir, rebound adjustment
  • Travel: 120mm / 80mm / Lockout (165x45mm)
• Remote System: SCOTT TwinLoc Technology
  • 3 suspension modes

Drivetrain (Wireless Electronic)

• Rear Derailleur: SRAM GX Eagle AXS Transmission, 12-speed
• Shifter: SRAM AXS Pod Controller
• Crankset: SRAM GX Eagle Transmission, DUB, 34T, 55mm chainline
• Chainguide: SCOTT custom
• Bottom Bracket: SRAM DUB PF92 MTB Wide (41x92mm)
• Chain: SRAM GX Eagle Transmission
• Cassette: SRAM GX Eagle XS-1275 Transmission, 10–52T

Brakes

• Brakes: SRAM Level Bronze Stealth, 4-piston hydraulic disc
• Rotors: SRAM HS2 Center Lock
  • 180mm (Front) / 160mm (Rear)

Cockpit

• Handlebar: Syncros Fraser iC SL XC Carbon
  • -12° rise, 8° backsweep, 740mm width
• Grips: Syncros Performance XC lock-on

Seat & Post

• Seatpost: Syncros Duncan Dropper Post 1.5 XC, 31.6mm (100mm travel, all sizes)
• Saddle: Syncros Belcarra Regular 1.5, titanium rails

Headset

• Headset: Syncros / Acros angle-adjust & cable routing system
  • ±0.6° head angle adjustment
  • ZS56/28.6 – ZS56/40 MTB

Wheelset & Tires

• Wheelset: Syncros Silverton 2.0-30 CL
  • Front: 15x110mm
  • Rear: 12x148mm, XD driver
  • 30mm tubeless-ready rim, 28H
  • Syncros axle with removable lever (6mm Allen, T30 & T25 tools)
• Tires: Maxxis Rekon Race, 29x2.4", 120TPI
  • Tubeless ready, EXO (front & rear)

Electronics & Extras

• System: SRAM AXS wireless electronic shifting
• Battery: SRAM AXS Powerpack included
• Accessories: Transport axle included

Color

• Pastel Grey / Dim Grey

Weight & Capacity

• Approx. Weight: 11.8 kg (26.01 lbs, tubeless setup)
• Max System Weight: 128 kg
  (Includes bike, rider, equipment, and luggage)

Additional Information

• Country of Origin: Taiwan
