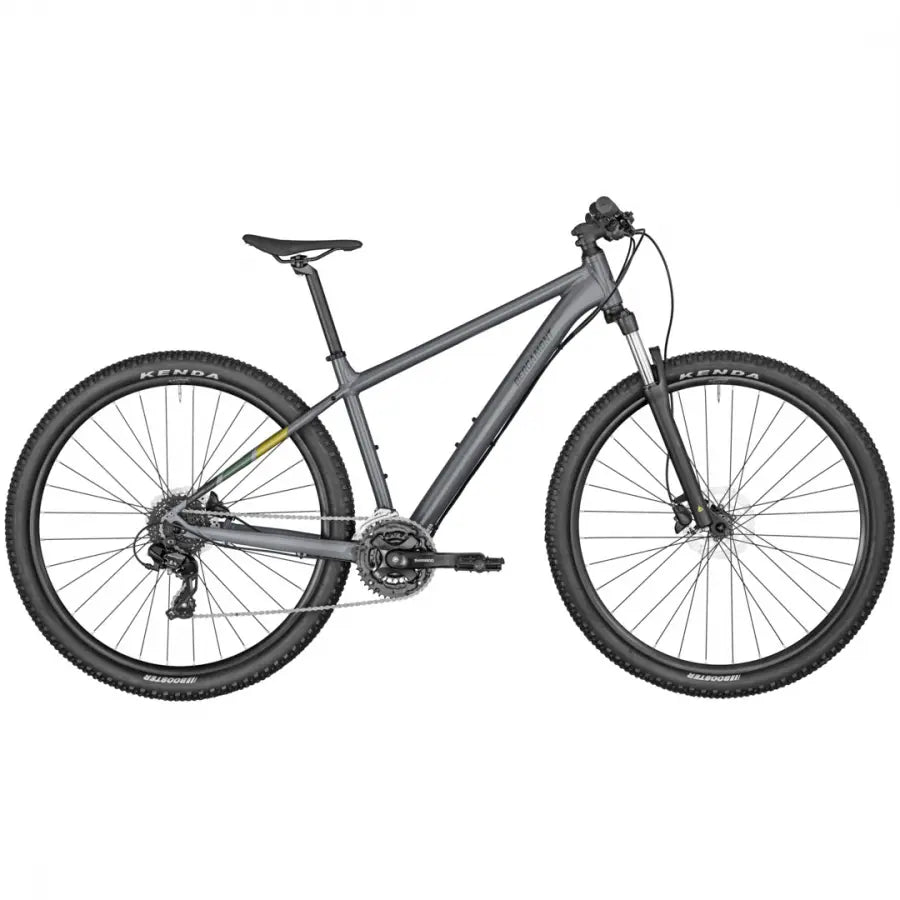

BERGAMONT REVOX 3 HARDTAIL MOUNTAIN BIKE

Key features

• Whether you're an experienced racer or a weekend warrior, the Bergamont Revox is the perfect choice for anyone looking to take their mountain biking to the next level.
• A Reliable Mountain bike hardtail for any terrain. Revox frame comes with an updated geometry and bigger size range, it offers more tyre clearance and improved compatibility with retrofitting fenders and kickstand.

Frame & Fork

• Frame: 29" (27.5") Lite Alloy AL-6061 tubing
• Fork: Suntour XCE28 DS
  • 100mm travel
  • Preload adjustment
• Headset: BGM FP-H807B
  • A-Headset, semi-integrated, 1 1/8″

Drivetrain

• Front Derailleur: Shimano FD-TY700
• Rear Derailleur: Shimano RD-TX800
• Shifters: Shimano SL-M315, 3x8-speed, RapidFire Plus
• Crankset: Shimano FC-TY501, 42/34/24T
• Bottom Bracket: Sealed cartridge, BSA
• Chain: KMC Z8
• Cassette: SunRace CS-M55, 11–34T

Brakes

• Brake Levers: Shimano BL-MT200
• Brakes: Shimano BR-MT200 hydraulic disc
• Rotors: Shimano SM-RT10, 160mm

Cockpit

• Handlebar: BGM Comp riser bar, 700mm width
• Stem: BGM Comp, ±6°
• Grips: Syncros MTB

Seat & Post

• Seatpost: BGM Comp
• Saddle: Syncros Tofino 2.5

Wheels & Tires

• Rims: Alex X20 Disc, 20mm width
• Hubs: Shimano, Center Lock, quick release (front & rear)
• Spokes: Steel, Black
• Tires: Kenda Booster 2.40"
  • 29" or 27.5" options (front & rear)
• Tubes:
  • Front: Maxxis SV29 (29")
  • Rear: Maxxis SV27 (27.5")

Components

• Pedals: Feimin FP-803

Weight & Capacity

• Approx. Weight: 14.6 kg
• Max System Weight: 115 kg
  (Includes bike, rider, equipment, and luggage)

Additional Information

• Color: Shiny Mortar Grey
• Country of Origin: Cambodia
