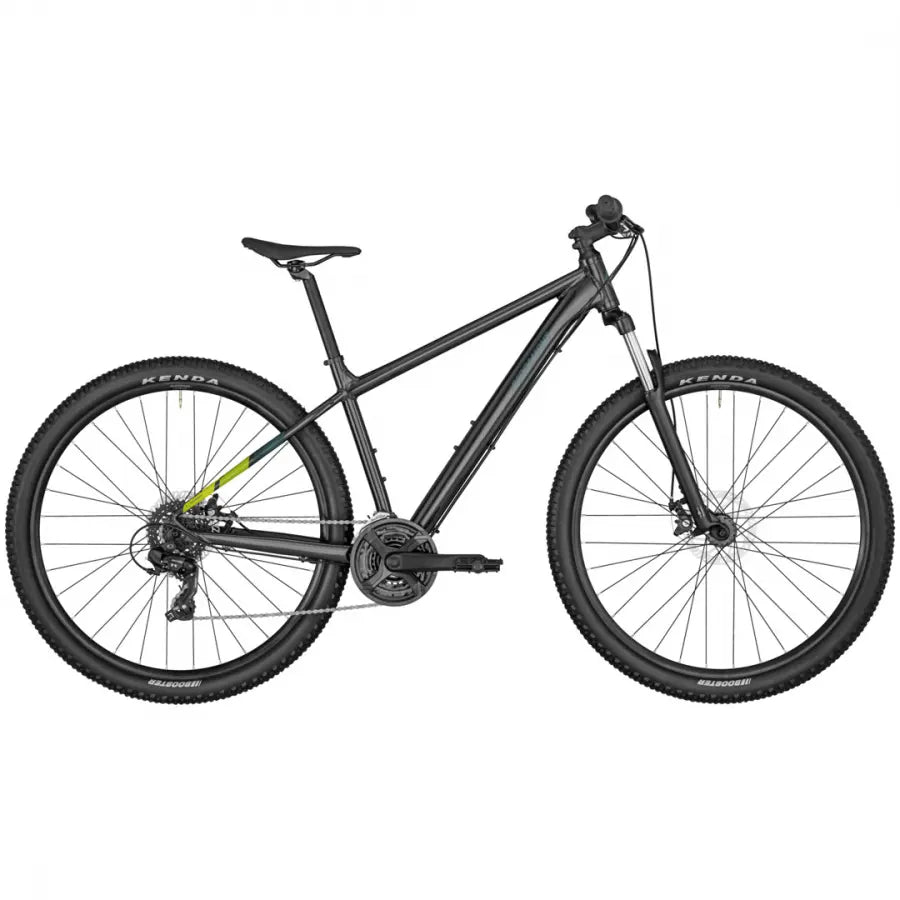

BERGAMONT REVOX 2 HARDTAIL MOUNTAIN BIKE

Key features

• Versatile mountain bike hardtail for any terrain. Revox frame with modern geometry, a big size range, generous tire clearance and optimal compatibility when retrofitting fenders and kickstand.
• The Revox frame includes an updated, more modern geometry, greater tire clearance, modifications to the shaping and improved combability for the mounting of accessories, such as mudguards or kickstands.

Frame & Fork

• Frame: 29" (27.5") Lite Alloy AL-6061 tubing
• Fork: Zoom 565 Disc
  • 100mm travel
• Headset: BGM FP-H807B
  • A-Headset, semi-integrated, 1 1/8″

Drivetrain

• Front Derailleur: Shimano FD-TY500
• Rear Derailleur: Shimano RD-TY300
• Shifters: Shimano SL-RV200, 3x7-speed (Revo shifter)
• Crankset: Prowheel, 42/34/24T
• Bottom Bracket: Sealed cartridge, BSA
• Chain: KMC Z7
• Freewheel: SunRace CS-M40, 11–34T

Brakes

• Brake Levers: Tektro alloy
• Brakes: Tektro MD-M280 mechanical disc
• Rotors: Tektro TR-160-24, 160mm

Cockpit

• Handlebar: BGM Comp riser bar, 700mm width
• Stem: BGM Comp, ±6°
• Grips: BGM Comp

Seat & Post

• Seatpost: BGM Comp
• Saddle: Syncros Tofino 2.5

Wheels & Tires

• Rims: Alex X20 Disc, 20mm width
• Hubs: BGM Comp, 6-bolt disc, quick release (front & rear)
• Spokes: Steel, Black
• Tires: Kenda Booster 2.40"
  • 29" or 27.5" options (front & rear)
• Tubes: Maxxis SV29 (29") / Maxxis SV27 (27.5")

Components

• Pedals: Feimin FP-803

Weight & Capacity

• Approx. Weight: 14.5 kg
• Max System Weight: 115 kg
  (Includes bike, rider, and luggage)

Additional Information

• Model Name: Revox
• Color: Shiny Flaky Black
• Country of Origin: Cambodia
