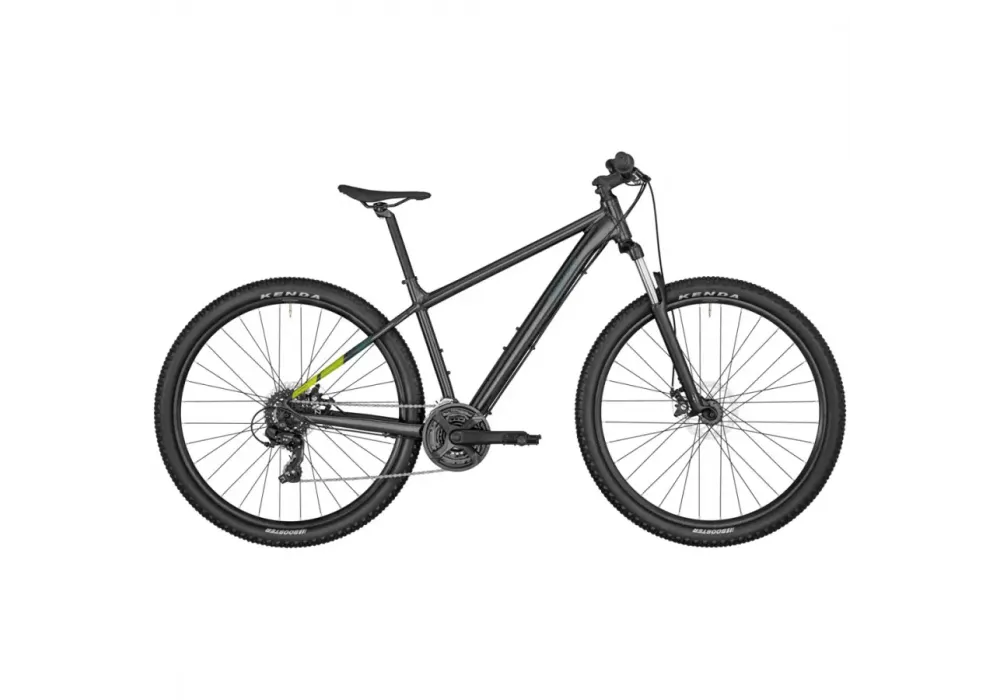

BERGAMONT REVOX 2 HARDTAIL MOUNTAIN BIKE

Key features

• Versatile mountain bike hardtail for any terrain. Revox frame with modern geometry, a big size range, generous tire clearance and optimal compatibility when retrofitting fenders and kickstand.
• The Revox frame includes an updated, more modern geometry, greater tire clearance, modifications to the shaping and improved combability for the mounting of accessories, such as mudguards or kickstands.

Model Name
Revox

Frame
29 inches (27.5 inches), Lite AL-6061 Tubing

Fork
Zoom 565 Disc, 100 mm

Rear Derailleur
Shimano RD-TY300

Front Derailleur
Shimano FD-TY500

Shifters
Shimano SL-RV200, 3×7-Speed, Revo Shifter

Crankset
Prowheel, 42/34/24T

Bottom Bracket
Sealed Cartridge, BSA

Chain
KMC Z7

Cassette / Freewheel
Sunrace CS-M40, 11–34T

Brake Levers
Tektro, Alloy

Brakes
Tektro MD-M280, Mechanical Disc Brake

Rotor
Tektro TR-160-24, 160 mm

Handlebar
BGM Comp, Riser Bar, Width: 700 mm

Stem
BGM Comp, ±6°

Seatpost
BGM Comp

Saddle
Syncros Tofino 2.5

Headset
BGM FP-H807B, A-Headset, Semi-Integrated, 1 1/8″

Front Hub
BGM Comp, 6-Bolt, Disc, Quick Release

Rear Hub
BGM Comp, 6-Bolt, Disc, Quick Release

Spokes
Steel, Black

Rims
Alex X20, Disc, Width: 20 mm

Front Tire
Kenda Booster, 29×2.40″ (27.5×2.40″)
Tube: Maxxis SV29 (29″)

Rear Tire
Kenda Booster, 29×2.40″ (27.5×2.40″)
Tube: Maxxis SV27 (27.5″)

Tubes
Maxxis SV29 (29″) / Maxxis SV27 (27.5″)

Pedals
Feimin FP-803

Grips
BGM Comp

Approx. Weight
14.5 kg

Weight Range
10–15 kg

Max System Weight
115 kg
(Bike + Rider + Equipment + Luggage)

Color
Shiny Flaky Black

Country of Origin
Cambodia
