Key features

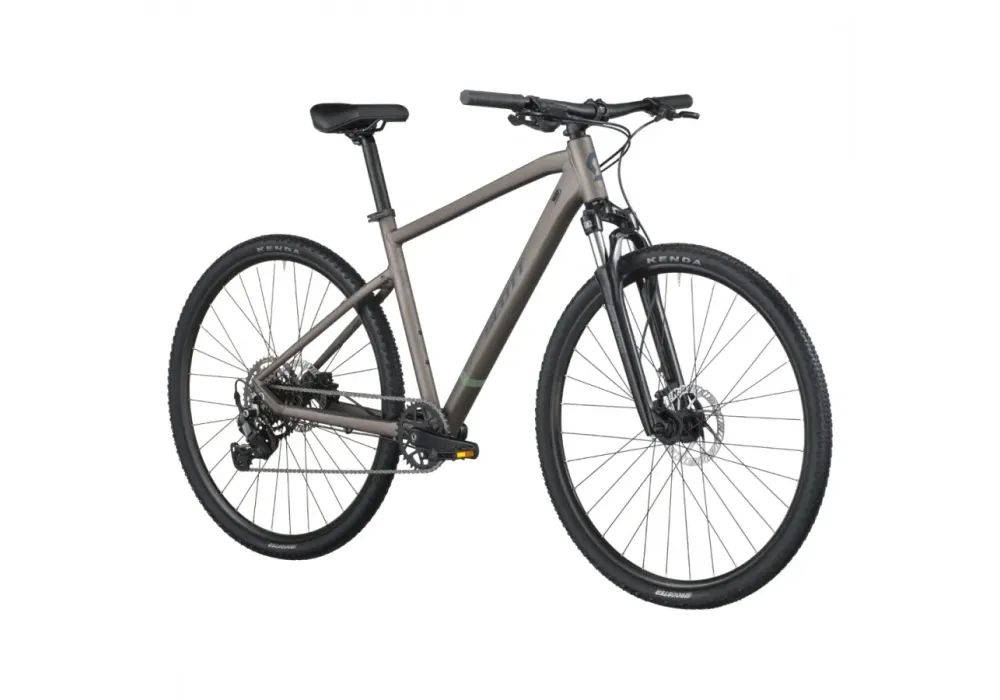

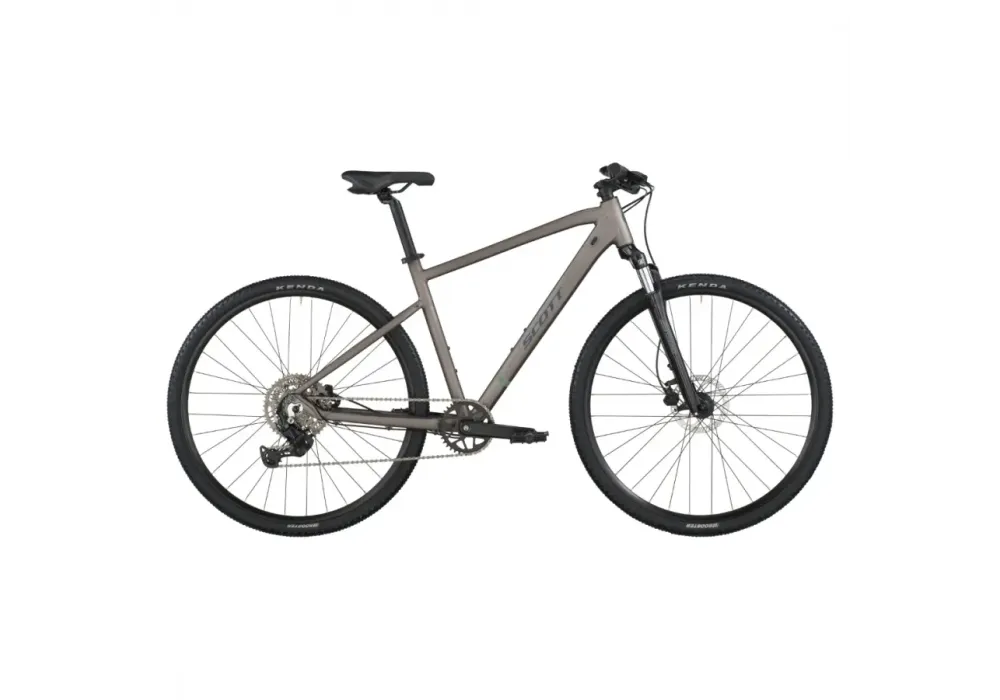

- Sub Cross 30 is your go-to ride for getting around town with efficiency and in style at an approachable price point. Designed around an alloy frame that prioritizes comfort, stability, and convenience, it’s a dream ride for those looking to tour around or roll a low-hassle commute into the office.
Frame & Fork
| Frame |
Sub Cross Alloy 6061, Custom Butted Tubing, Internal Cable Routing, Sub Cross Men / Lady Geometry |
| Fork |
SR Suntour NEX, 63mm Travel |
Drivetrain
| Rear Derailleur |
Shimano CUES RD-U4000-GS, Shadow Type, 9-Speed |
| Shifters |
Shimano CUES SL-U4000-9, 2-Way Release |
| Crankset |
Prowheel C10Y-NW Steel, 36T |
| Bottom Bracket |
Feimin FP.B908N, BB73, Square Taper |
| Chain |
KMC Xglide |
| Cassette |
Shimano CUES CS-LG400-9, 11–46T |
Brakes
| Brake System |
Tektro HDM275 Hydraulic Disc Brakes |
| Rotors |
Tektro, 6-Bolt, 160mm Front / 160mm Rear |
Cockpit & Seating
| Handlebar |
HL MTB-AL-312BT, 720mm Width, 12mm Rise, Black
Syncros Comfort Lock-On Grips |
| Stem |
HL TDS-C342-8FOV, 10°, 31.8mm, Black |
| Seatpost |
HL SP C212, 31.6mm × 350mm, Black |
| Saddle |
Syncros Capilano Sport |
| Headset |
Syncros OE Press Fit, 1 1/8", OD 50mm / ID 44mm |
Wheels & Tires
| Rims |
Alexrims X-20 Disc, 32H, Black |
| Front Hub |
Formula DC-19 FQR Disc |
| Rear Hub |
Formula DC-25 8-Speed RQR Disc |
| Spokes |
14G Stainless Steel, Black |
| Front Tire |
Kenda Booster, 700×45C, 30 TPI |
| Rear Tire |
Kenda Booster, 700×45C, 30 TPI |
Additional Information
| Approx. Weight |
13.48 kg / 29.72 lbs (Without Pedals) |
| Max System Weight |
130 kg (Bike + Rider + Equipment + Additional Luggage) |
Please note: Specifications are subject to change without prior notice.
